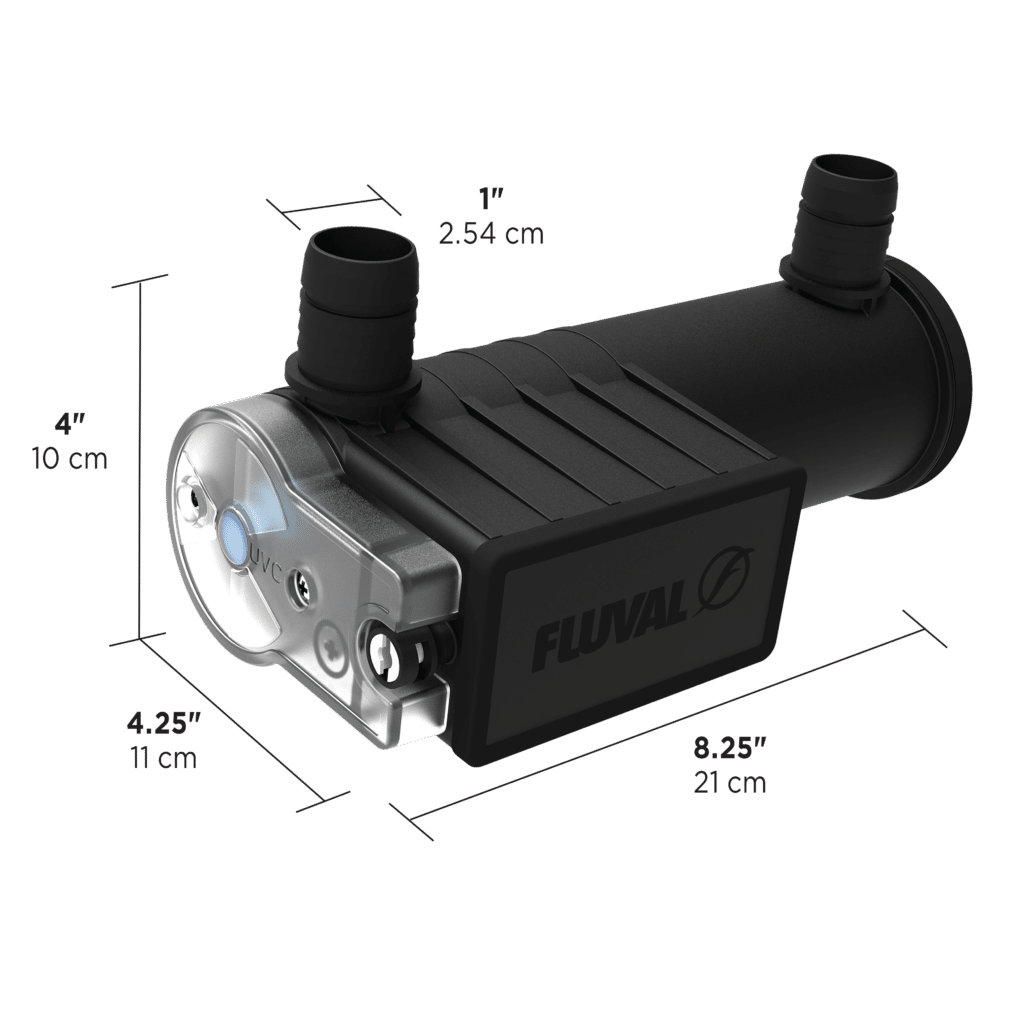

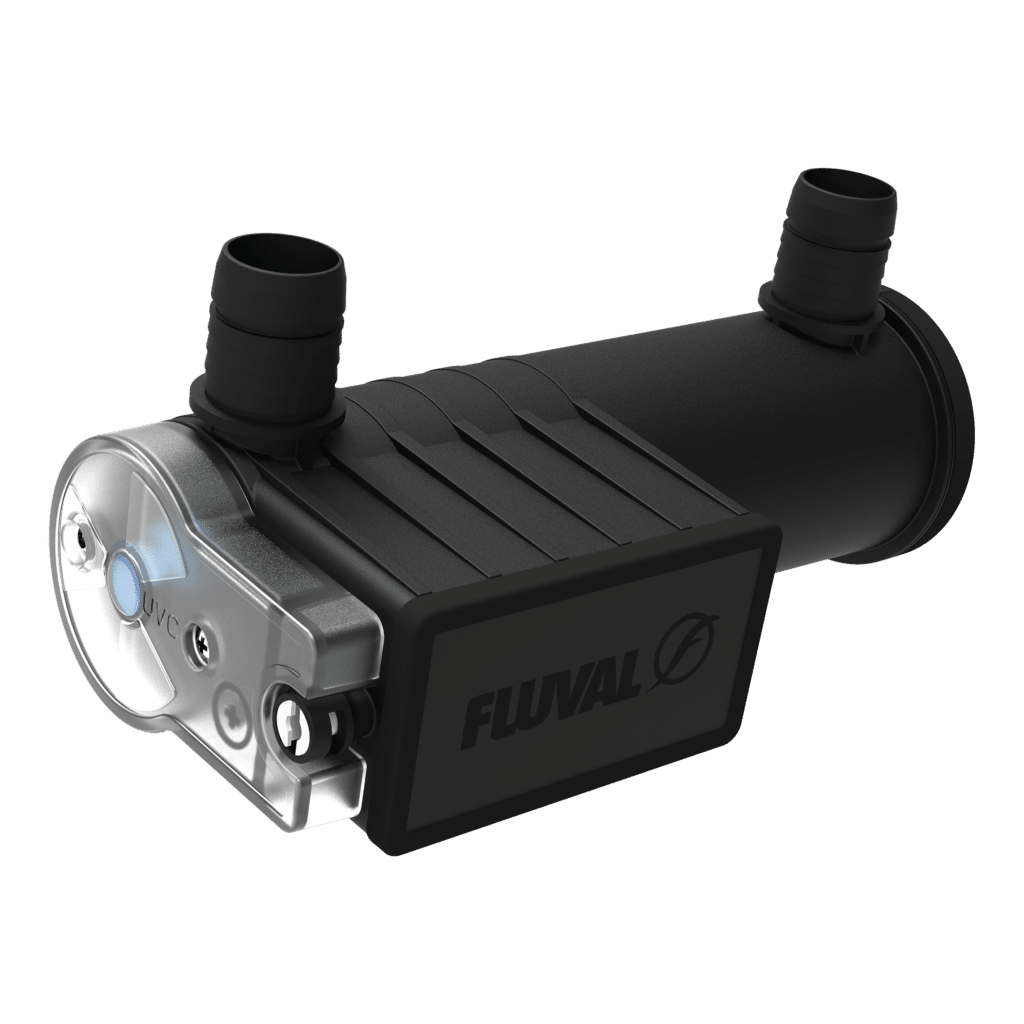

Fluval FX UVC Clarifier 6W CE (1500L)
Item Number: A199
UPC Code: 015561101998
Description
The FX UVC In-Line Clarifier quickly and easily connects to all canister filters to eliminate suspended algae for a clean and clear aquarium. With unique CCFL technology, the FX UVC bulb runs cooler to last up to 2X longer than traditional lamps. It attacks green and cloudy water by applying powerful, DNA-destroying light emissions at a precise 253 nanometer wavelength. This natural process is chemical-free and will not affect beneficial, surface-dwelling bacterial colonies that are already established. Say goodbye to cloudy and green water forever!
Features
- Effectively eliminates suspended algae in the water column for a crystal clear aquarium
- Compatible with Fluval FX Series filters and competitive canisters (1” to 5/8” (25 to 16 mm) hose adapters included)
- Unique CCFL bulb technology runs cooler than traditional lamps to last 20,000 hours (over 2 years of continuous use). Also prevents calcium build-up on quartz lens (no maintenance required)
- Energy-efficient 6W operation for powerful water clarification with lower energy costs
- Chemical-free process does not harm beneficial bacteria in the filter

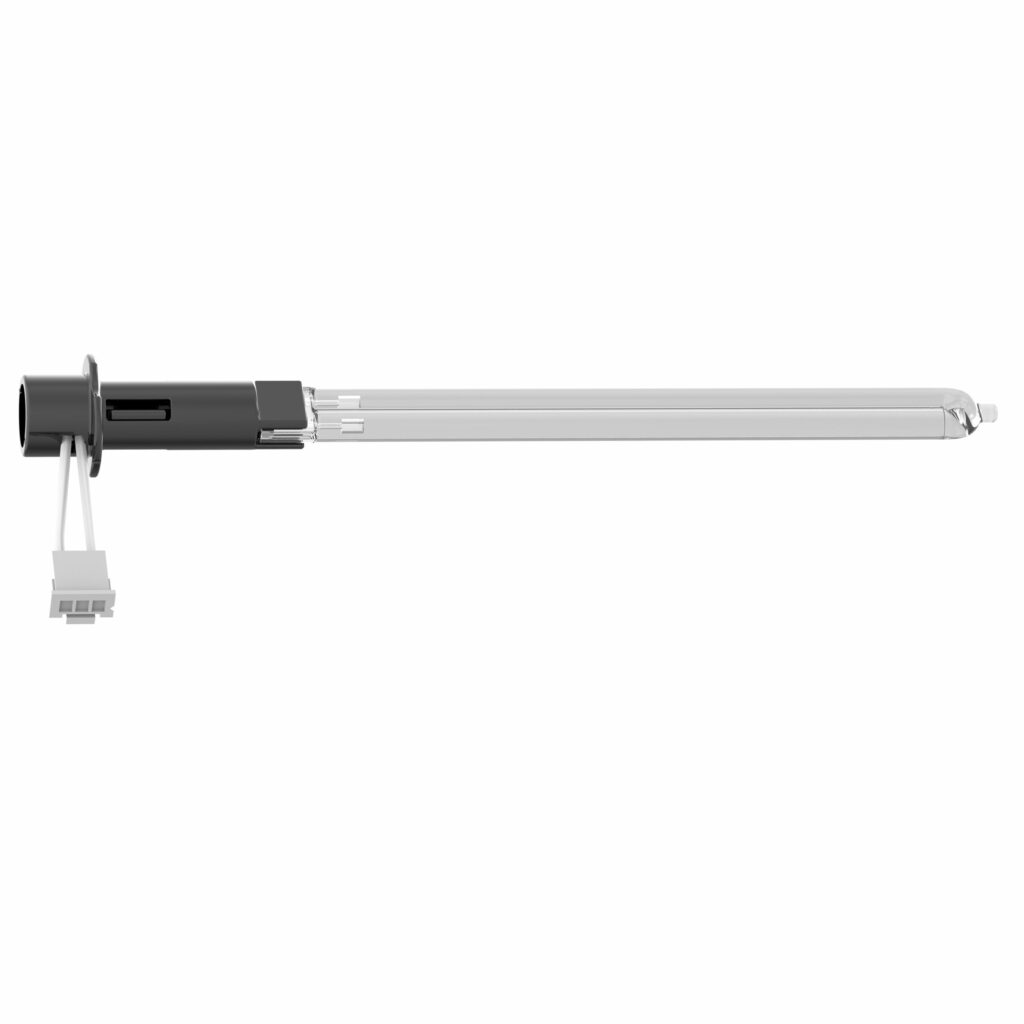

- Replaceable bulb available (#A19990 – sold separately)
- Light indicator window provides visual confirmation when UVC bulb is operational
- IP44 certification safeguards unit against water ingress (splash-proof)
- Fast and easy setup with flexible mounting options – connects directly to FX output valve or horizontally/vertically on cabinet wall (universal mounting bracket included)
- Multi-directional operation – units works in either water flow direction (no need to switch existing filter setup)
- Made in Italy
- For use in freshwater and saltwater aquariums up to 400 US Gal / 1500 L
What’s Included
- FX UVC unit
- Power supply 100-240V/24V
- 90° rubber elbow adapter

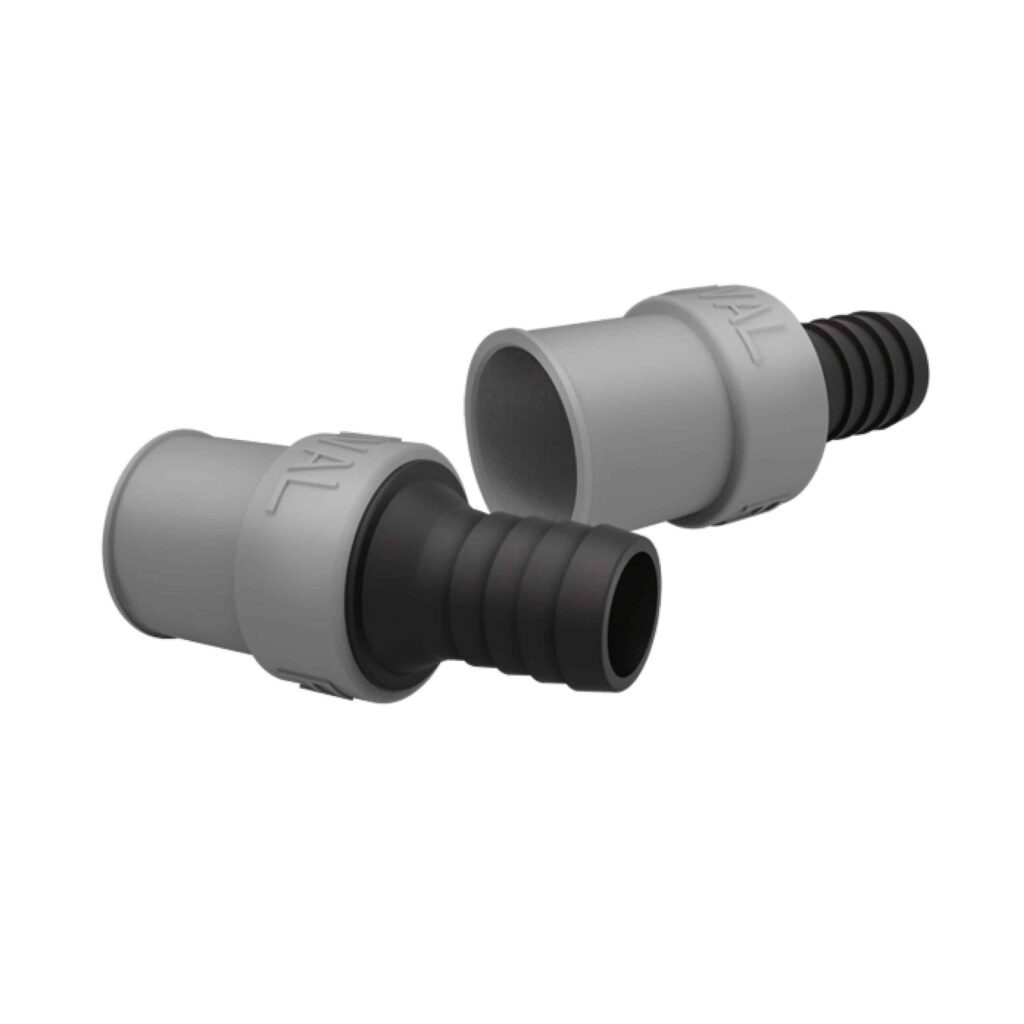

- 1″ to 5/8″ (25 to 16 mm) hose adapters
- 4-27mm diameter metal hose clamps

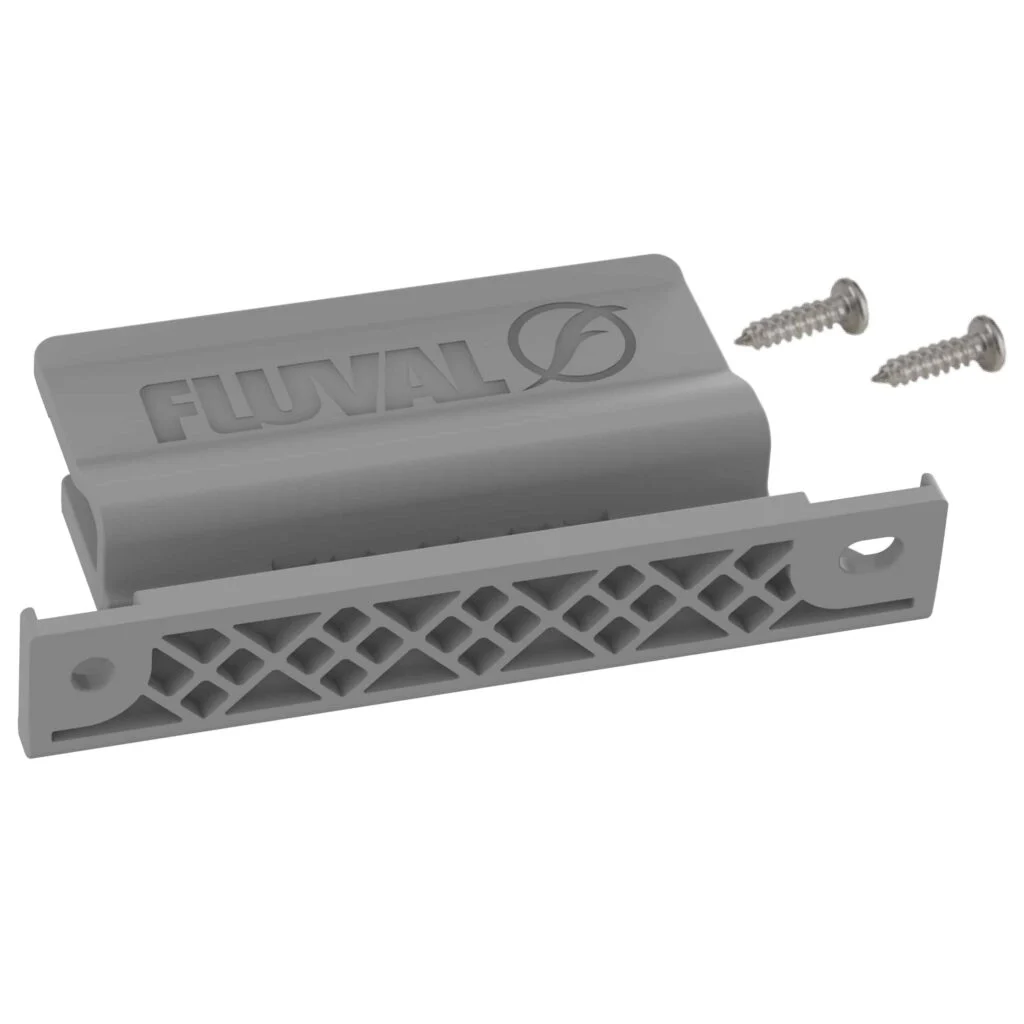

- Universal cabinet wall mounting bracket and screws
Questions & Answers
If the cloudiness is due to suspended bacteria or algae, the FX UVC Clarifier will indeed clear the water, provided it is installed as instructed. If the cloudiness is caused by fine particulate matter suspended in the water column, the use of fine filter media such as Fluval Quick-Clear is recommended.
To help reduce smells, the best solution is the use of activated carbon. We recommend investigating the source of the odor: if it is due to decomposing organic matter, make sure to remove it and perform regular partial water changes.
For best results – particularly in the case of cloudy water – using fine filter media, such as Fluval Quick-Clear, in conjunction with the FX UVC Clarifier is recommended.
In addition to neutralizing suspended algae, independent laboratory research has indicated that the FX UVC Clarifier can help partially inhibit the growth of algae on surfaces in the aquarium.
The beneficial species of bacteria in an aquarium live on surfaces in the filter, in the substrate, on plants, etc. They do not live in the water column and as such are entirely unaffected by UVC sterilization.
The FX UVC Clarifier may affect some beneficial microorganisms present in the water column, including ones that may be a food source for some species of fish and coral. In healthy reef aquariums, however, these microorganisms are very abundant and the FX UVC Clarifier won’t significantly affect their population levels.
The FX UVC Clarifier helps to keep aquariums clear and healthy, but it is not a treatment for sick fish. Always consult your local aquatics retailer for assistance in preventing or treating aquarium fish diseases.
In general, parasites are too large to be effectively terminated by UVC light. To treat ich, we recommend consulting your local aquatics retailer for assistance.
The indicator light (purple glow) on the side of the FX UVC Clarifier confirms when the unit is operational.
We recommend first running the FX UVC Clarifier intermittently, while the aquarium lights are on. If the desired effects are not achieved, gradually increase the amount of time the unit runs each day until they are.
The FX UVC Clarifier connects in-line to canister filter hosing with an internal diameter of 1″ / 25 mm, such as the Fluval FX Series. If the included hose adapters are used, any canister filter with 5/8″ / 16 mm hosing can be connected, such as the Fluval 07 Series.
The FX UVC Clarifier can be mounted either horizontally or vertically.

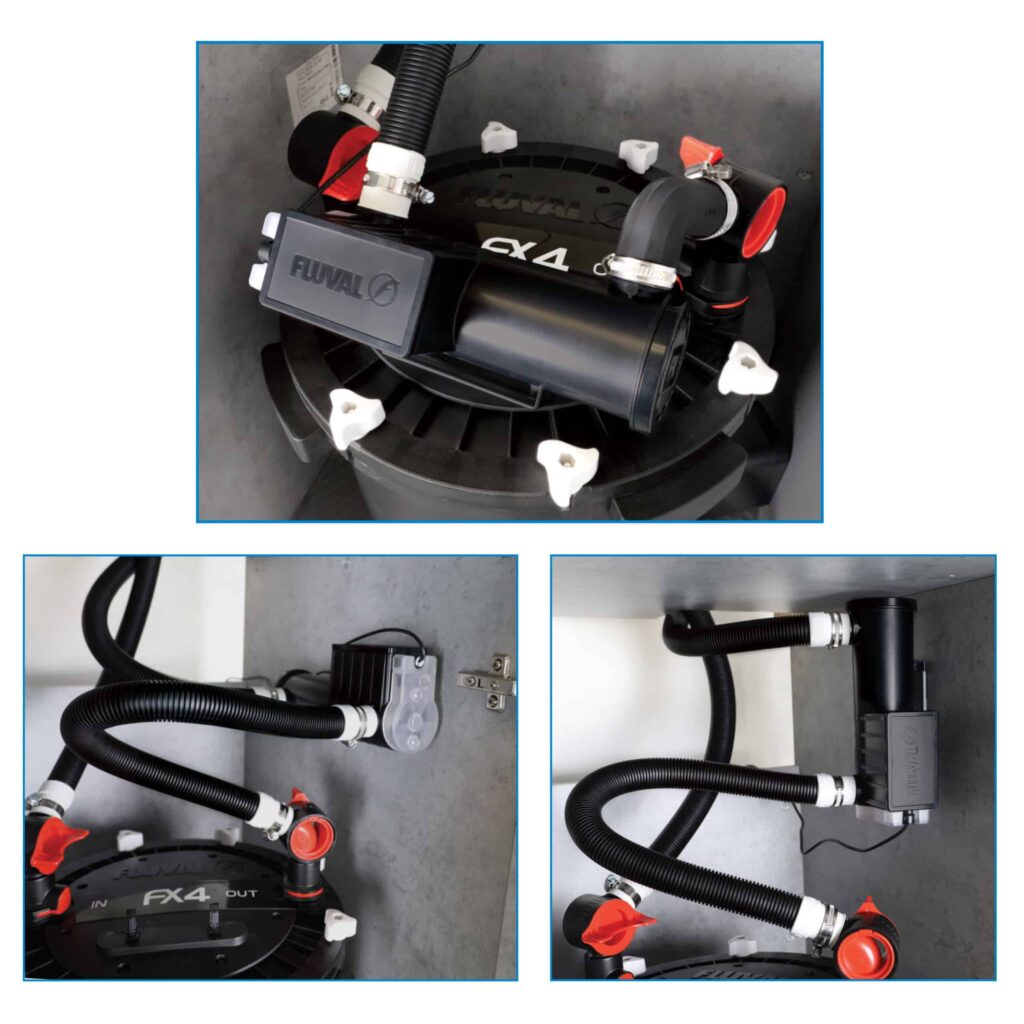

The FX UVC Clarifier can be installed either directly to the output of your FX Series canister filter by means of the 90° rubber elbow adapter, or to the cabinet wall with the universal cabinet wall mount bracket and screws. Note that an additional length of FX ribbed hosing (Item #A20233) is necessary for the latter installation method.
The unit is safe to continue using.
Yes! A replacement bulb (Item #A19990) is sold separately.
We recommend opening the unit to verify the integrity of the CCFL bulb and the quartz tube. If the bulb is broken, a replacement bulb (Item #A19990) must be purchased. If the quartz tube is damaged, the unit as a whole must be replaced. If there is any doubt, cease use of the FX UVC Clarifier immediately and contact our customer support team via our website for assistance.
A Cold Cathode Fluorescent Light (CCFL) runs cooler than a traditional fluorescent bulb. As such, it lasts significantly longer and helps prevent limescale from developing on the quartz tube.
It is! Independent laboratory testing has demonstrated that the FX UVC Clarifier effectively clears cloudy and green water in aquariums up to 400 US Gal / 1500 L.
Yes, the FX UVC Clarifier is safe to use with planted aquariums, and can even help improve plant health by preventing the growth of cyanobacteria that would otherwise smother and kill them.
The FX UVC Clarifier’s performance will depend on flow rate, contact time, and aquarium volume. Independent laboratory testing has proven the unit to be effective in aquariums up to 400 US Gal / 1500 L with a maximum circulation rate of 563 US GPH / 2130 LPH. If your aquarium falls within these parameters, the FX UVC Clarifier will eliminate suspended algae as well as cloudy water caused by suspended bacterial blooms.
No! While the FX UVC Clarifier is compatible with FX Series canister filters and any other filters with 1″ / 25 mm hosing, the included hose adapters also allow it to function with canister filters with 5/8″ / 16 mm hosing, including the 07 Series.
The FX UVC Clarifier should be mounted on the output of your canister filter. If mounted on the intake, particles and debris in the water may shield algae and bacteria from the UVC light. On the output side, the water is free of particles and debris, and as such algae and bacteria are eliminated with the greatest efficiency.
It is recommended to turn off your FX UVC Clarifier while medicating your fish, as UVC light has been shown to reduce the efficiency of medication in some cases.
You can safely continue dosing the fertilizer while using the FX UVC Clarifier.
No! The plastic in Fluval UVC Clarifiers contains additives that protect it from breaking down from exposure to the UVC light.
